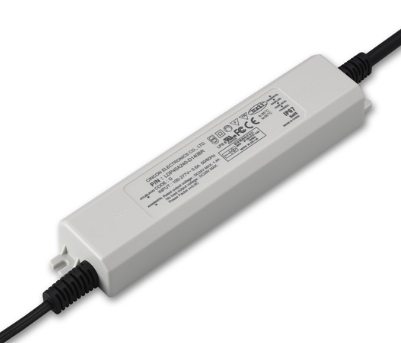

40W AC/DCドライバ 定電流シリーズ
LDP40シリーズの主な仕様
・ユニバーサル入力90 - 305VAC
・アクティブPFC >0.9
・低突入電流 <5A
・低リップルとノイズ
・IP 67
・ULクラス2
・調光：PWM / 1-10V / ポテンショメータ
・安全性：UL8750 / IEC61347 & PSE
・ユニバーサル入力90 - 305VAC
・アクティブPFC >0.9
・低突入電流 <5A
・低リップルとノイズ
・IP 67
・ULクラス2
・調光：PWM / 1-10V / ポテンショメータ
・安全性：UL8750 / IEC61347 & PSE
製品ラインナップ
| 型番 | 効率 | 出力 | 入力電圧 | 出力電圧 | 出力電流 | 調光 |
|---|---|---|---|---|---|---|
| LDP40A240-C140BR | 85％ | 33W | 90-305VAC | 9-24V | 1.4A | - |
| LDP40A240-C170BR | 86% | 40W | 90-305VAC | 9-24V | 1.7A | - |
| LDP40A360-C105BR | 85% | 37W | 90-305VAC | 9-36V | 1.05A | - |
| LDP40A360-C111BR | 86% | 40W | 90-305VAC | 9-36V | 1.11A | - |
| LDP40A480-C070BR | 86% | 33W | 90-305VAC | 9-48V | 0.7A | - |
| LDP40A480-C084BR | 88% | 40W | 90-305VAC | 9-48V | 0.84A | - |
| LDP40S240-C140BR | 85% | 33W | 90-305VAC | 9-24V | 1.4A | - |
| LDP40S240-C170BR | 86% | 40W | 90-305VAC | 9-24V | 1.7A | - |
| LDP40S360-C105BR | 85% | 37W | 90-305VAC | 9-36V | 1.05A | - |
| LDP40S360-C111BR | 86% | 40W | 90-305VAC | 9-36V | 1.11A | - |
| LDP40S480-C070BR | 86% | 33W | 90-305VAC | 9-48V | 0.7A | - |
| LDP40S480-C084BR | 88% | 40W | 90-305VAC | 9-48V | 0.84A | - |
| LDP40A240-D140BR | 85% | 33W | 90-305VAC | 9-24V | 1.4A | DALI |
| LDP40A240-D170BR | 86% | 40W | 90-305VAC | 9-24V | 1.7A | DALI |
| LDP40A360-D105BR | 85% | 37W | 90-305VAC | 9-36V | 1.05A | DALI |
| LDP40A360-D111BR | 86% | 40W | 90-305VAC | 9-36V | 1.11A | DALI |
| LDP40A480-D070BR | 86% | 33W | 90-305VAC | 9-48V | 0.7A | DALI |
| LDP40A480-D084BR | 88% | 40W | 90-305VAC | 9-48V | 0.84A | DALI |
| LDP40S240-D170BR | 86% | 40W | 90-305VAC | 9-24V | 1.7A | DALI |
| LDP40S240-D140BR | 85% | 33W | 90-305VAC | 9-24V | 1.4A | DALI |
| LDP40S360-D105BR | 85% | 37W | 90-305VAC | 9-36V | 1.05A | DALI |
| LDP40S360-D111BR | 86% | 40W | 90-305VAC | 9-36V | 1.11A | DALI |
| LDP40S480-D070BR | 86% | 33W | 90-305VAC | 9-48V | 0.7A | DALI |
| LDP40S480-D084BR | 88% | 40W | 90-305VAC | 9-48V | 0.84A | DALI |
| LDP40A240-P140BR | 85% | 33W | 90-305VAC | 9-24V | 1.4A | 3 in 1 |
| LDP40A240-P170BR | 86% | 40W | 90-305VAC | 9-24V | 1.7A | 3 in 1 |
| LDP40A360-P105BR | 85% | 37W | 90-305VAC | 9-36V | 1.05A | 3 in 1 |
| LDP40A360-P111BR | 86% | 40W | 90-305VAC | 9-36V | 1.11A | 3 in 1 |
| LDP40A480-P070BR | 86% | 33W | 90-305VAC | 9-48V | 0.7A | 3 in 1 |
| LDP40A480-P084BR | 88% | 40W | 90-305VAC | 9-48V | 0.84A | 3 in 1 |
| LDP40S240-P140BR | 85% | 33W | 90-305VAC | 9-24V | 1.4A | 3 in 1 |
| LDP40S240-P170BR | 86% | 40W | 90-305VAC | 9-24V | 1.7A | 3 in 1 |
| LDP40S360-P105BR | 85% | 37W | 90-305VAC | 9-36V | 1.05A | 3 in 1 |
| LDP40S360-P111BR | 86% | 40W | 90-305VAC | 9-36V | 1.11A | 3 in 1 |
| LDP40S480-P070BR | 86% | 33W | 90-305VAC | 9-48V | 0.7A | 3 in 1 |
| LDP40S480-P084BR | 88% | 40W | 90-305VAC | 9-48V | 0.84A | 3 in 1 |
